THE AKAR

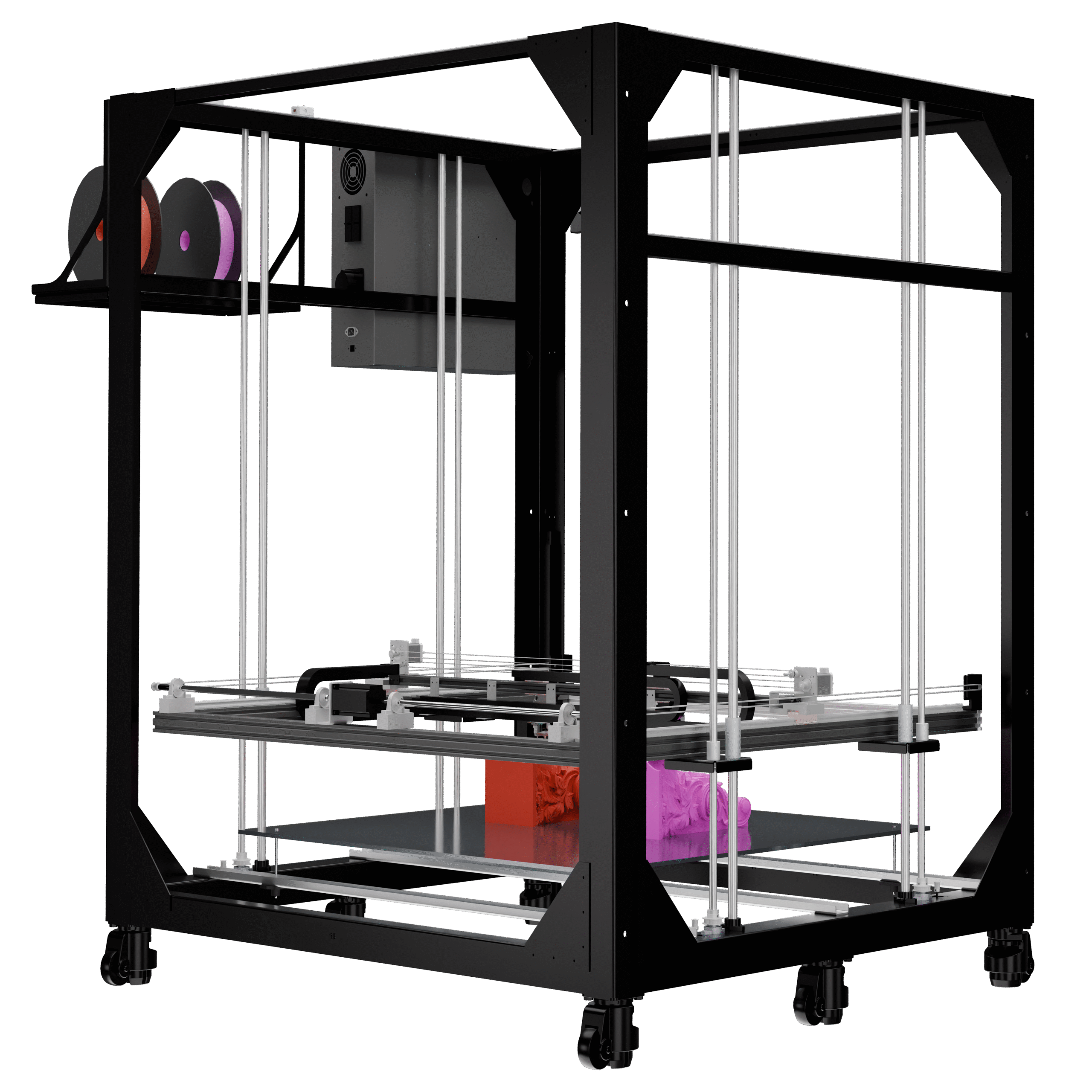

The AKAR 1000– Budget-Friendly, Modular 3D Printer: IDEX Head, Laser Engraving & Large Bed Size
KEY FEATURES OF THIS PRINTER
- 1050x1050x1250mm (XYZ) Build Volume Industrial 3D Printer
- IDEX: Double your output with mirror & duplication modes
- Modular Toolhead Design (Opt : Laser, Pellet)
- User-Friendly Interface
- Touch Screen for Standalone Printing
- USB & WIFI Connectivity with IoT
- Filament Supply Sensing
- High-Resolution Prints with Heated Bed
- Multiple Printable Materials
Get to know the AKAR PRO 3D Printer
7″ Full Colour Touch UI
Experience precise control with our 7″ touchscreen—intuitive, simple, and optimized for 3D printing
Range of filaments
PLA / ABS / TPU / PETG / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill and more
AC Heated Bed
100 º C in just 5 minutes (800 Watt)
Filament Run-out Sensor
When the filament runs out, the printer will trigger an alarm and, as a result, pause the printing process. Therefore, you get a worry-free printing experience.
Hiwin HGR15C XY Linear Motion
Perfect linear motion for XY axes helps the machine to achieve perfect 3D prints.
CNC Machined Parts
Our CNC milled blocks ensure perfect XY alignment for repeatable dimensional accuracy in prints.
Unibody Metal Design
Crafted with Precision: Our Unibody Metal Design offers a seamless, sturdy, durable frame. Experience sophistication and strength in one singular form.
Modified MK10 Hot-end
Reengineered MK10 hot-end prevents clogs for up to 20 days of fail-free printing
IDEX Support
IDEX Toolhead enables fast, precise large-scale 3D printing with mirror and duplication modes—perfect for big prototypes or art up to 1m.
Power Loss (opt.)
Print Resuming feature
Ball Screw for Z-Axis
Helps in smooth and long life of Z-axis motion system
Can Bus Connection
The CANbus board streamlines wiring, boosts print quality, and enables real-time efficient communication
AI Camera Failure Detect (Optional)
Monitor & Manage your prints remotely and get AI Failure Detection saving huge amounts of filament, time & money
klipper
7″ touchscreen with high-speed printing, better quality, advanced calibration, input shaping, pressure advance, endless upgrades, and a responsive UI
Supports 5 kg Spools
Print large 2KG+ objects without mid-job material changes
Modular Toolhead Design
Explore endless possibilities with VersaPrint’s modular toolhead—easily swap modules for 3D printing, laser engraving, cutting, and more as your needs grow.
25A High Quality Power Switch
High quality 25A rated power switch for reliable and safer printing
Soluble Supports
Print soluble supports with ease using PVA/HIPS using secondary print head
High flow Hot end upto 150mm3/sec (Opt)
Ideal for printing 1 mm or above nozzle sizes
1:1 Gear ratio extruder (Opt)
The high flow hotend is equiped with large nema 17 60mm long motor
32GB EMMC Storage
Prevents data losses and corruption of the main board operating system, Improved reliablity
Modular Design
Whole frame can be easily disassebled and transported
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Build Volume (WxDxH) | 1050x1050x1250mm (reg), 1050x1050x1200mm (high flow) |
| Machine Size (WxDxH) | 1800x1450x1800 mm |
| Print Technology | FDM/FFF |
| Packing Size (WxDxH) | 1750x1750x1100 mm |
| No. of Extruders | Single / Dual (Modular, Optional Pellet Extruder) |
| Printing Speed | 30-300 mm/s (30-200 mm/s recommended) |
| Build Plate Type | Aluminum Plate with Toughened Glass, Optional: PEI Sheet |
| Max Build Plate Temp. | 120ºC |
| Heating Bed Element | Silicone Heater |
| Filament Compatibility | PLA / TPU / TPE / PETG / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill / Nylon / PC (Optional Pellets) |
| Max Nozzle Temp. | 300ºC |
| Max Power Usage | 3000 W |
| Supported File Format | GCODE & UFP |
| Supported Software | Mekuva Slicer, Simplify3D, Cura, Orca, PrusaSlicer |
| Product Weight | 350 Kg |
| Box Weight | 450 Kg |
| Supported Spool Sizes | 1 Kg, 1.5 Kg, 2.5 Kg, 5 Kg |
| Compatible Nozzle Sizes | 0.4, 0.5, 0.6, 0.8, 1.0, 1.2 mm |
| Bed Leveling | Automatic Mesh Levelling, 36-point leveling |
| Printer Display (Control) | 7″ Full Colour Touchscreen with IoT Smart Connectivity |
| Complementary Accessories | Scraper, Side cutter, Nose pliers, Nozzle changing wrench, Glue stick, Extra heater and thermistor, Hotend setup, Pendrive, Spirit level, Allen key set, Extra nozzles, 1 Kg PLA Filament, and extra screws. |
