Printing Speed: Upto 500mm/sec
Printing Platform: Texture PEI sheet

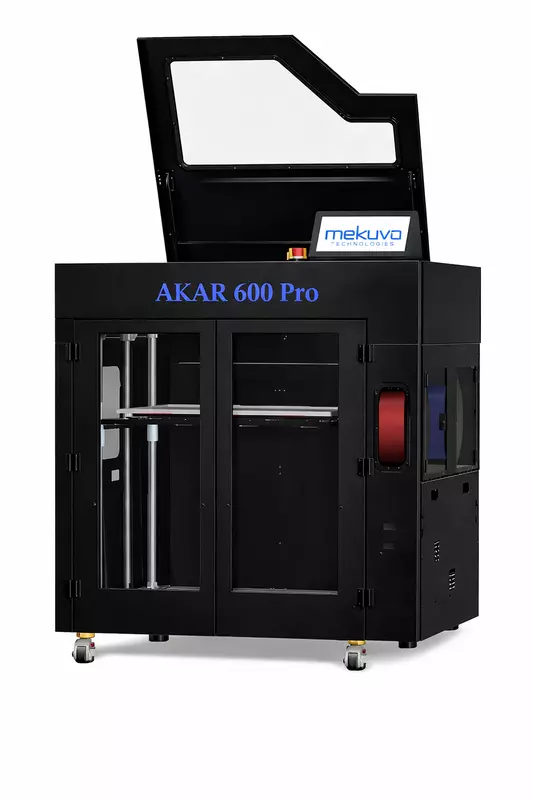

The AKAR 600 PRO is a Industry standard, high temperature large-format, enclosed frame, high-speed 3D printer engineered to print large sized models over 2 feet in size. It combines speed, accuracy, and reliability in a robust and scalable platform.
Powered by Klipper firmware, the AKAR 600 PRO features advanced motion control technologies such as Input Shaping and Pressure Advance, ensuring high-speed printing with exceptional surface quality. The integrated load-cell based/manual probe bed leveling system delivers perfect first layers every time with minimal manual intervention.
With built-in support for AI-based print monitoring, remote access and control, part exclusion, and IoT-enabled workflow integration, the AKAR 600 PRO is ready for smart factory and remote production workflows.
Key Features:
1) Medium-Build Volume:
a) 660x640x650mm (XYZ) single print head
b) 600x640x650mm (XYZ) Dual nozzle IDEX print head
| Feature | AKAR 600 (Single Print Head) | AKAR 600 (Dual Print Head IDEX) |
|---|---|---|
| Build Volume (XYZ) | 660x640x650 mm | 600×640×650 mm |
| Print Head Configuration | Single nozzle | Dual nozzle (IDEX – Independent Dual Extruder) |
| Simultaneous Dual-Material Printing | ❌ No | ✅ Yes |
| Mirror & Duplicate Print Modes | ❌ No | ✅ Yes |
| Print Speed Optimization | High | Moderate |
| Ideal For | Large single-material parts | Multi-material / Composite parts |
| Calibration Complexity | Lower | Moderate (due to IDEX alignment) |
| Cost | Lower | Higher |
| Best Use Case | Large build volume | Multi-material prototypes, Mirror/Duplication model, and Base material with PLA/PVA supports. |
2) Klipper Firmware: Supports Input shaper, Pressure advance, and other IOT features.
3) Automatic Bed Leveling: The integrated strain-gauge load cell leveling/ probe based system enables fully automatic and hassle-free bed leveling without the need for manual Z-offset adjustment, ensuring perfect first layers every time
4) High-Quality Linear Rails & Ball Screws: The AKAR 600 PRO uses premium precision guide rails and ball screws from PMI brand, ensuring exceptional motion accuracy, long service life, and consistent performance even during high-speed, long-duration printing.
5) CNC-Machined Precision Components: The use of CNC-machined precision components ensures perfect alignment of guide rails and motion assemblies, resulting in high structural accuracy, excellent repeatability, and consistent print precision across long production runs.
6) Unibody Welded Frame: The unibody welded steel frame provides exceptional structural rigidity and vibration resistance, ensuring high stability, precise motion control, and consistent print quality even at high speeds and with large, heavy prints.
7) Large 7-Inch Touchscreen: The large 7-inch high-resolution touchscreen provides a smooth, intuitive, and responsive user interface, making printer control, monitoring, and job management simple and efficient.
8) High flow rate hotend (Upto 42mm3/sec flow rate): Print large parts at super-fast speeds with a high flow hotend.
9) Filament run-out detection and tangle detection: Automatically pauses the print when filament gets completed or gets tangled.
10) Caster Wheels with levelling foot: Better print quality and more stable printing.
11) Warranty: Comes with standard limited terms 1 year onsite warranty.
12) Power Outage Recovery: Automatically saves the last printed position and resumes the print on power recovery.
Product Specifications:
Build Volume (WxDxH) | 660x640x650mm (single head) / 660x640x650mm (IDEX Dual) |
Machine Size (WxDxH) | 1040x889x980mm |
Machine weight | 85 Kg's |
Print Technology | FDM/FFF |
No. of Extruders | Single / Dual (IDEX) |
Printing Speed | 30-500 mm/s (30-350mm/sec recommended) |
Build Plate Type | Aluminium Plate with PEI Sheet |
Max Build Plate Temp. | 120ºC |
Heating Bed Element | AC Silicon Heater |
Max Heated Chamber Temp. | NA |
Filament Compatibility | PLA / TPU / TPE / PETG / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill |
Max Nozzle Temp. | 350ºC (default) / 440ºC (option to choose) |
Max Power Usage | 1200W |
Supported File Format | GCODE & UFP |
Supported Software | Simplify3D, Cura, Orca, PrusaSlicer, and Mekuva slicer |
Product Weight (with wooden box) | 155 Kg |
Supported Spool Sizes | 1 Kg, 1.5 Kg, 3 Kg. |
Compatible Nozzle Sizes | 0.25, 0.4, 0.5, 0.6, 0.8, 1.0 mm |
Bed Leveling | Manual leveling/ Automatic, 36-point leveling |
Printer Display (Control) | 7-inch full-color touch UI display |
Complementary Accessories | Scaper, Side cutter, Nose plier, Nozzle changing wrench, Glue stick, Extra heater and thermistor, Hotend setup, Pendrive, Sprit level, Allen key set, Extra nozzles, 1 Kg PLA/ABS material, and extra screws. |
