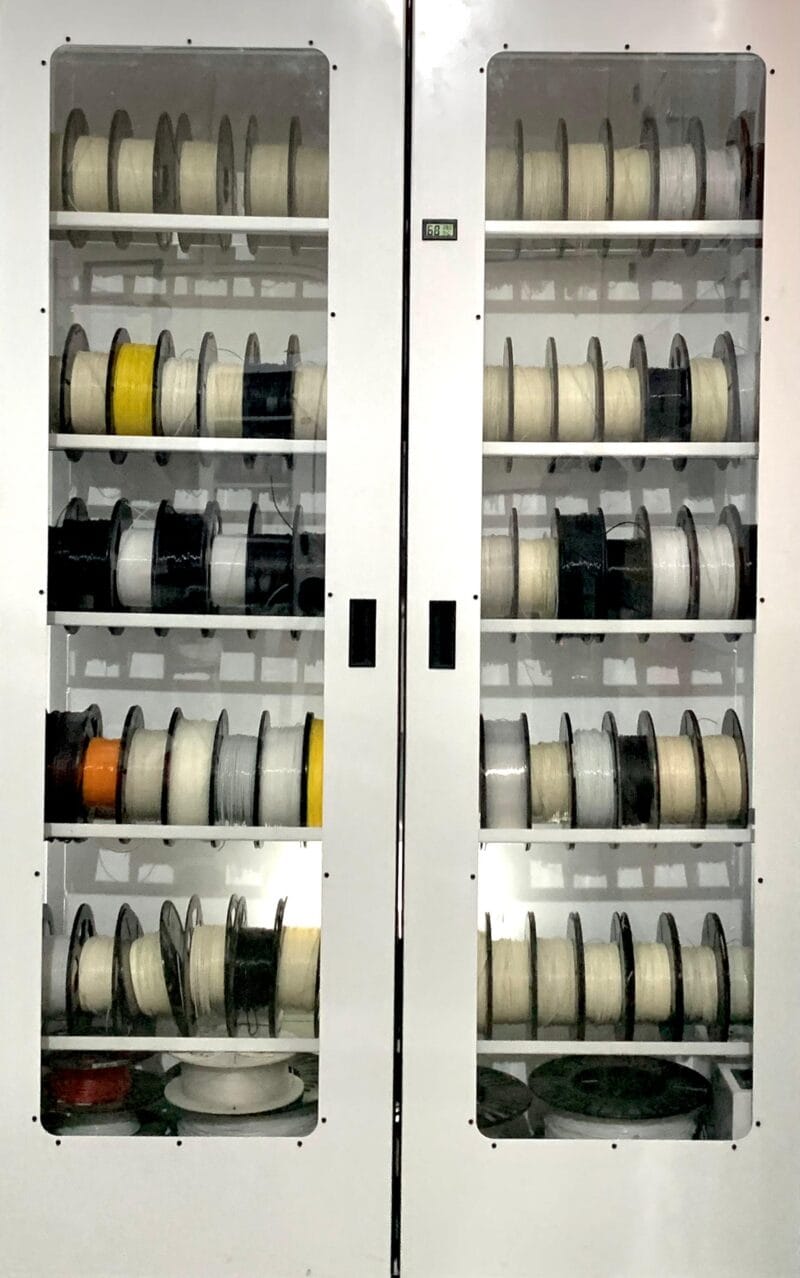

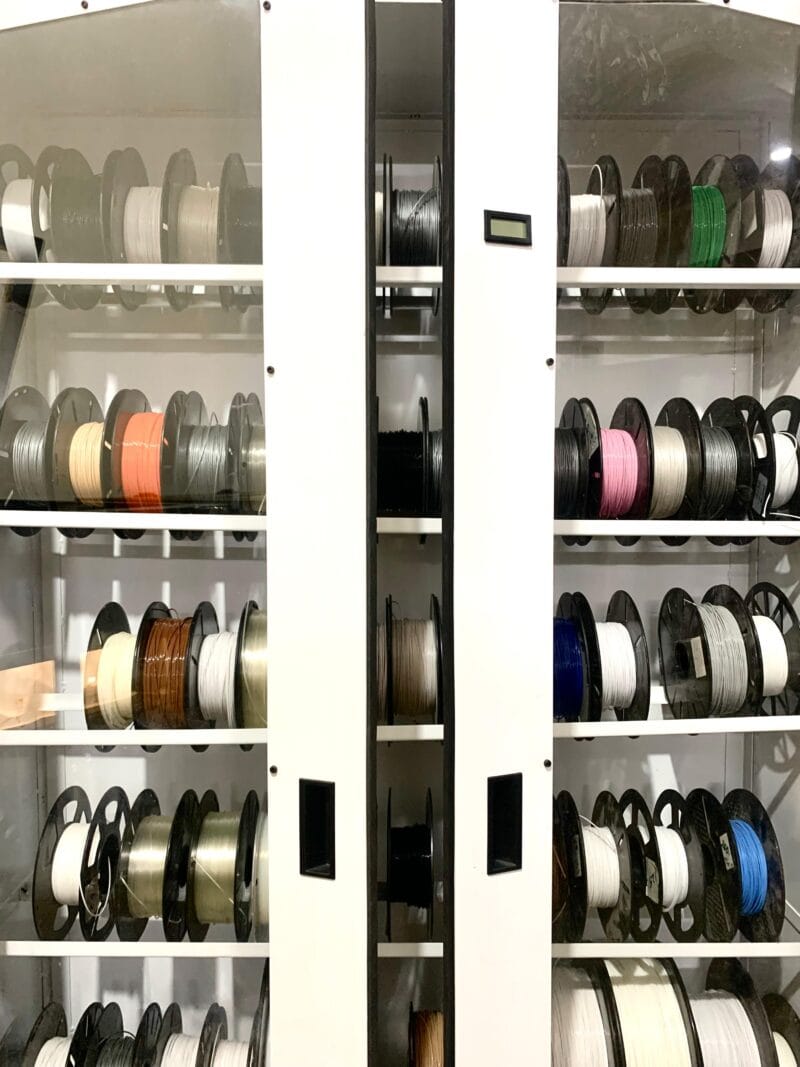

A filament storage dry rack cabinet is designed to keep PLA, PETG, ABS, Nylon, TPU, PC, ASA, PP, and other 3D printing filaments dry and moisture-free. It has airtight sealing, humidity control, and a durable design, ensuring optimal filament performance and longevity. The cabinet has wheels for easy movement. 150 rolls of filament can be stored.
Technical specifications:
| Capacity | Upto 150 spools (1KG) or 80 spools (2.5KG) |
| Cabinet Sizes (WxDxH) | 1120x355x1800 mm |
| Max Internal Temp. | 75ºC |
| Max Power Usage | 320 w (Consumes 2.5KW for 24hours) |

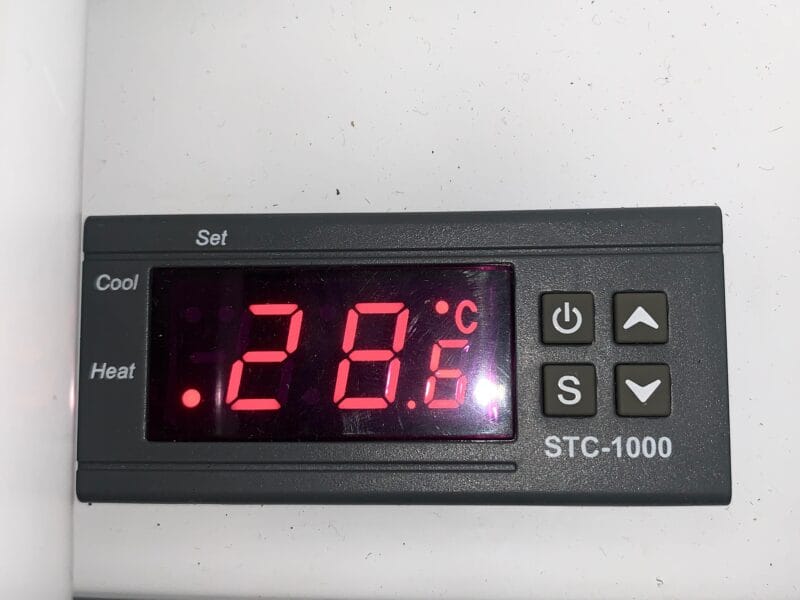

| Input Method | Controller |
| Noise levels | 70 dB |
| Product Weight | 110Kg |
| Box Weight | – |
| Supported Spool Sizes | 1 Kg, 1.5 Kg, 2.5 Kg and 5 Kg |
| Printer Display (Control) | Graphic display |
| Complementary Accessories | Door Handles, 2.5 Allen key, and Power cord |
How it works:
- The internal chamber is heated up to 70C max via a controlled 300W heater
- Once the chamber temperature reached the set value
- The dehumidifier automatically turns on and sucks hot moist air through it and leaves dry air out (moisture-free air)
- The cycle repeats until all the moisture is taken out of the chamber
Product brochure: https://drive.google.com/file/d/19DsVoyhsWPE2i9c67DlK70tJbxgV2-CL/view?usp=drive_link
300W Chamber Heater
Support for Multiple Filament Types:
300W air heater can reach up to 70C Temperature which is sufficient enough to dry PLA, ABS, PETG, Nylon, TPU, ASA, HIPS, PC, and exotic filament.

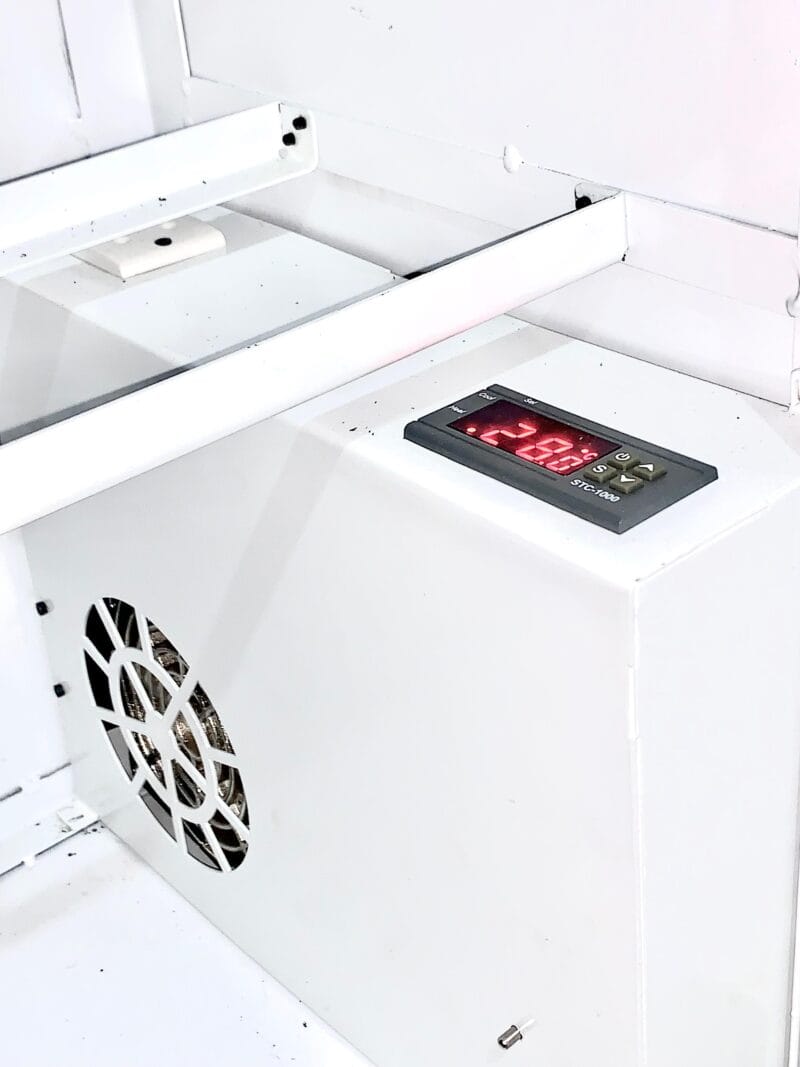

Internal dehumidifier
Removes moisure from dry air effectively:
Mekuva filament dry cabinet is equipped with a dehumidifier which actively captures the moisture from the air and adds an additional layer of protecting the filament from moisture
