AKAR 600 – Precision Beyond Boundaries: Large-Scale, Smart, and Seamless 3D Printing
KEY FEATURES OF THIS PRINTER-
- 620x620x620mm (XYZ) Large Volume Industrial 3D Printer
- Full Web Control with AI Camera Failure Detection (Opt.)
- User Friendly User Interface
- Smart Printing with 7″ Touchscreen
- SD Card & Wi-Fi connectivity
- Filament Supply Sensing
- Power Outage Recovery
- High-Resolution prints with Heated bed
- Multiple Printable materials

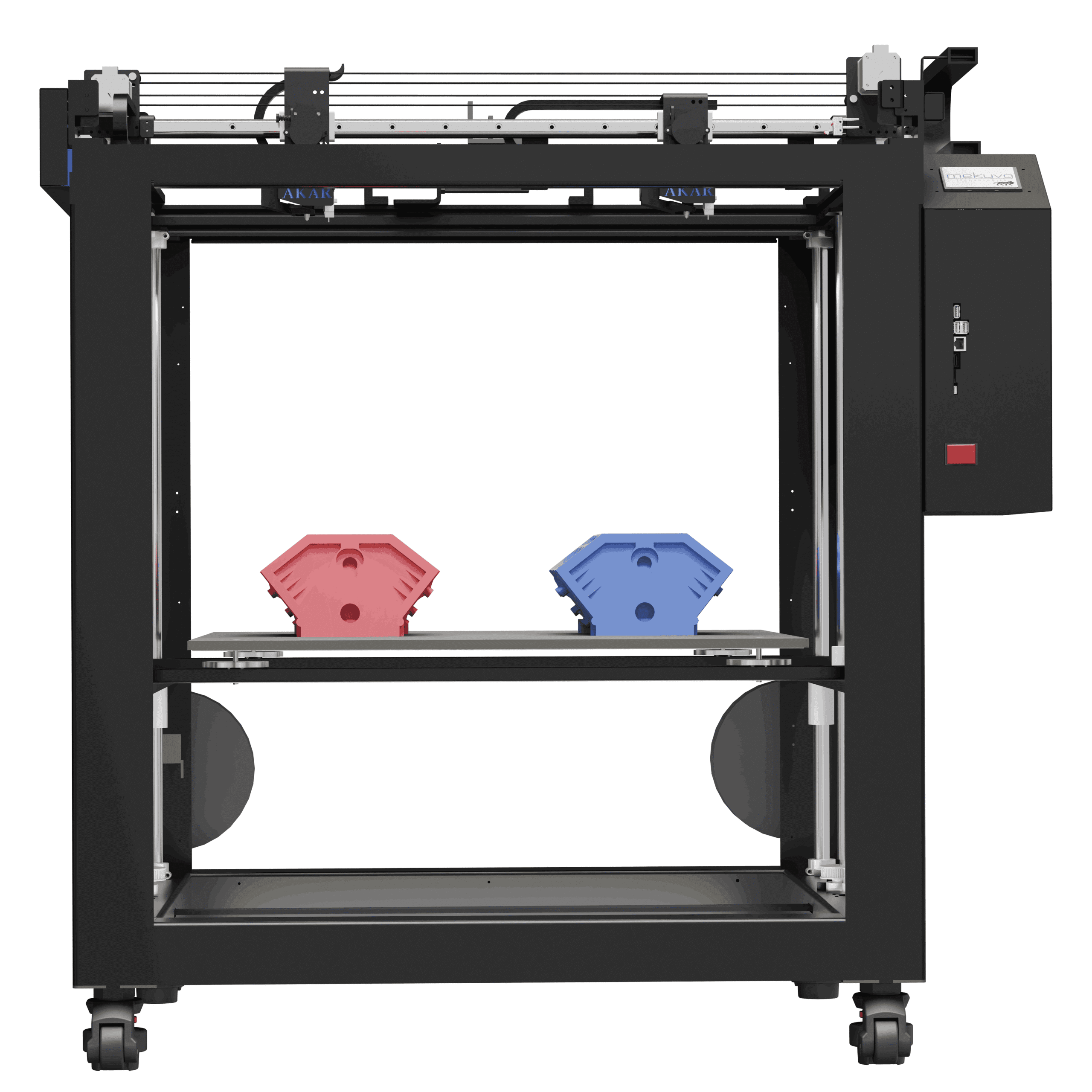

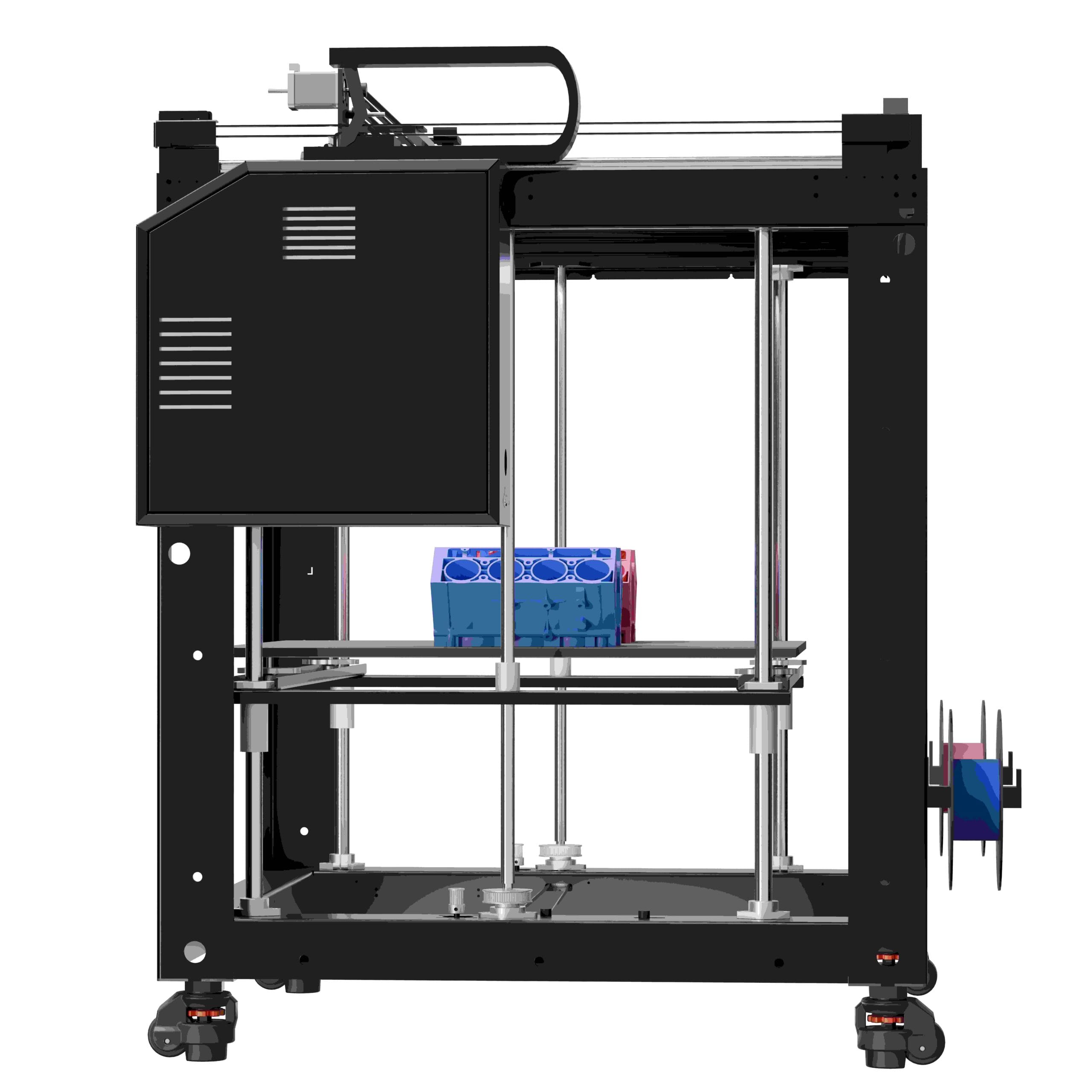

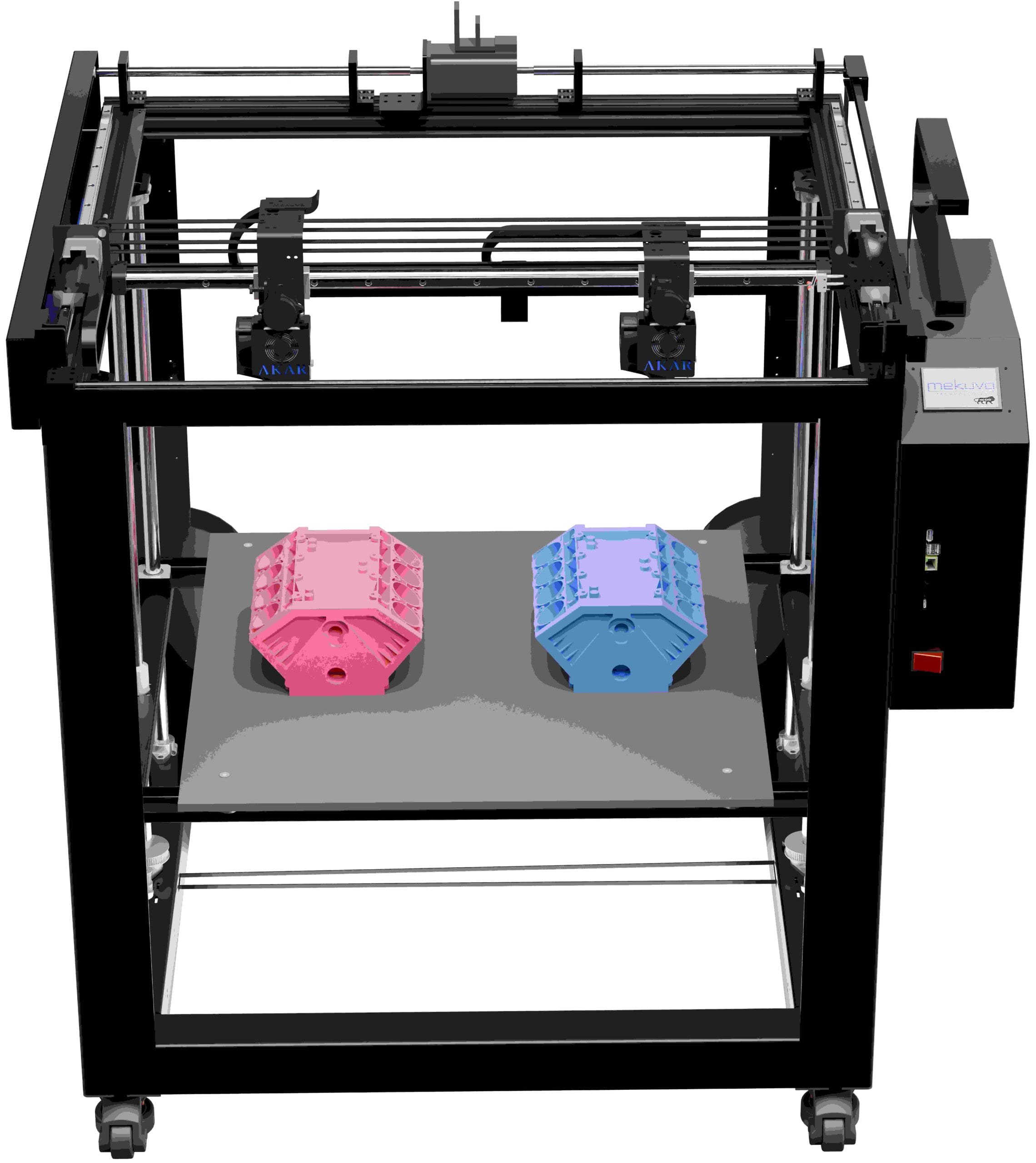

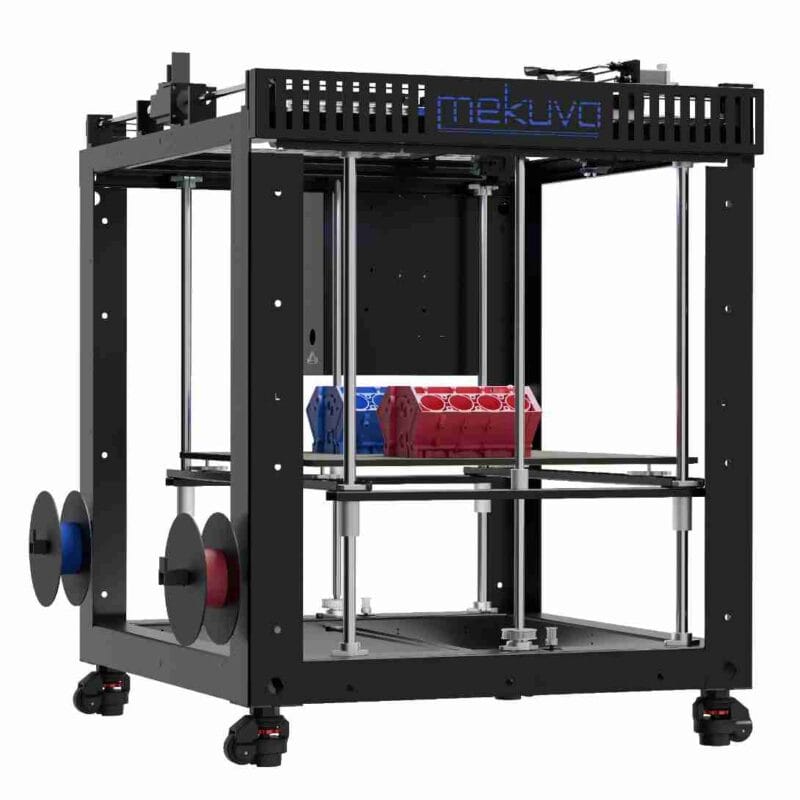

Get to know the AKAR PRO 3D Printer
Power Loss
Print Resuming feature
Ball Screw for Z-Axis
Helps in smooth and long life of Z-axis motion system
Supports 3 kg Spools
Worry free printing large objects which require atleast 2 KG or more material to finish the job. No need to worry about changing the material during the print jobs
Range of filaments
PLA / ABS / TPU / PETG / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill and more
AC Heated Bed
100 º C in just 5 minutes (800 Watt)
Filament Run-out Sensor
When the filament runs out, the printer will trigger an alarm and, as a result, pause the printing process. Therefore, you get a worry-free printing experience.
PMI HGR15C XY Linear Motion
Perfect linear motion for XY axes helps the machine to achieve perfect 3D prints.
CNC Machined Parts
Our CNC milled blocks ensure perfect XY alignment for repeatable dimensional accuracy in prints.
Unibody Metal Design
Crafted with Precision: Our Unibody Metal Design offers a seamless, sturdy, durable frame. Experience sophistication and strength in one singular form.
Dual Extrusion System
Print soluble support materials
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Build Volume (WxDxH) | 600x600x620 mm |
| Machine Size (WxDxH) | 1030x920x900 mm |
| Print Technology | FDM/FFF |
| No. of Extruders | Single / Dual |
| Printing Speed | 30-200 mm/s (30-80 mm/s recommended) |
| Build Plate Type | Aluminum Plate with Toughened Glass, Optional: PEI Sheet |
| Max Build Plate Temp. | 100ºC |
| Heating Bed Element | AC Heater |
| Filament Compatibility | PLA / TPU / TPE / PETG / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill |
| Max Nozzle Temp. | 265ºC |
| Max Power Usage | 1300 W |
| Supported File Format | GCODE & UFP (Cura) |
| Supported Software | Simplify3D, Cura, Slic3r, PrusaSlicer |
| Product Weight | 135 Kg |
| Supported Spool Sizes | 1 Kg, 1.5 Kg, 2.5 Kg, 3 Kg |
| Compatible Nozzle Sizes | 0.25, 0.4, 0.5, 0.6, 0.8, 1.0 mm |
| Bed Leveling | Automatic, 25-point leveling |
| Printer Display (Control) | 3.5-inch full-color touch UI display with a knob |
| Complementary Accessories | Scaper, Side cutter, Nose plier, Nozzle changing wrench, Glue stick, Extra heater and thermistor, Hotend setup, Pendrive, Sprit level, Allen key set, Extra nozzles, 1 Kg PLA material, and extra screws. |
